GIVING TOTAL

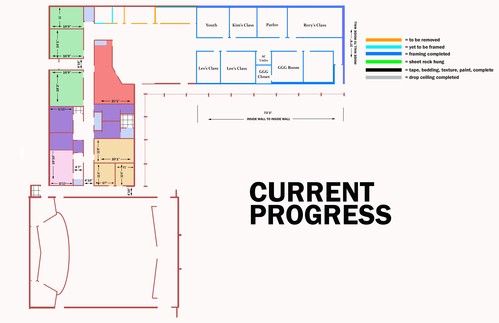

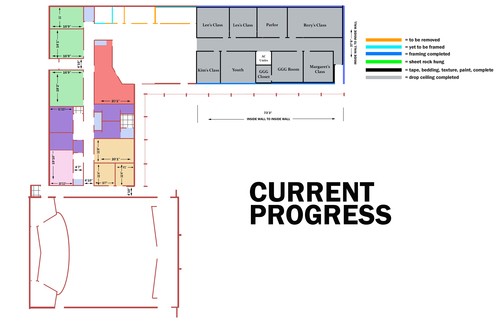

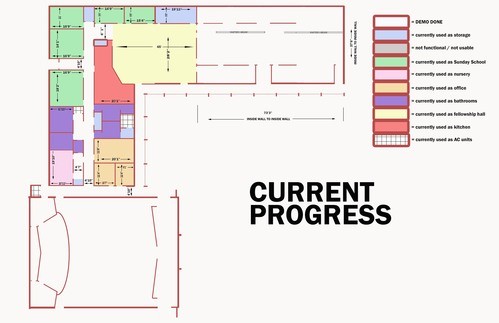

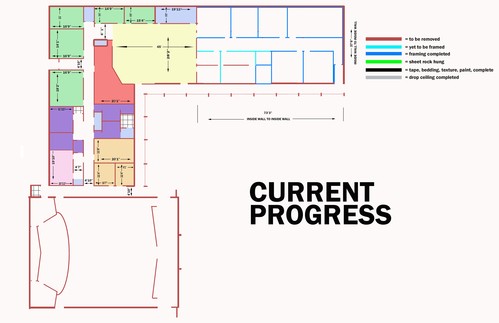

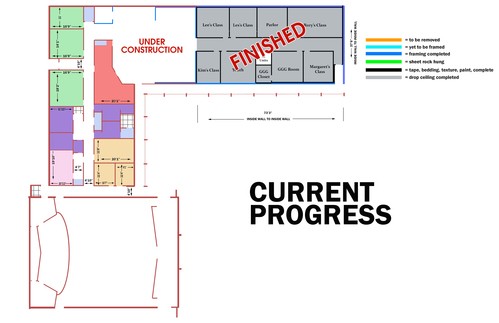

CONSTRUCTION PROGRESS

NEXT STEPS

We are thankful for the men and women of our church who possess special talents and skills for projects such as this.  Below is a list for any eager volunteers outlining the tasks that need to be done.  While some tasks can be done at various times, IT IS IMPORTANT THAT THESE TASKS ARE DONE IN THIS ORDER.  As we check off certain parts of the list, we'll scratch them off the list!  What a blessing to have such able and willing volunteers!  If you want to help, but want some more clarification on what needs to be done, please contact Rory or Leo.

  • DEMO EXISTING SUNDAY SCHOOL WING:
    • Tear out drop ceiling
    • Take up carpet and tile
    • Tear out existing plaster and sheet rock
    • Tear out all walls running north to south (leave east to west walls)
    • Haul off debris

  • CLEAN UP CURRENT ELECTRICAL
    • Identify and label the current electrical boxes in the ceiling.
    • Remove all down-hanging plugs and switches.
    • Wire up temporary plugs and lighting for ongoing construction.
    • Remove remaining ceiling grid and light fixtures.
    • Remove old AC duct from the attic space.

  • FRAMING
    • Shore up structure with beams and poles
    • Frame up three long (east to west) walls (potential load bearing).
    • Remove old east to west running walls.
    • Frame up the remaining walls (north/south)
    • Frame in the exterior cubby hole for brick.
    • Remove current exterior doors in cubby hole.  Frame for interior closet door.
    • Build 18" platform for AC units in new AC closet
    • Spray foam south and west walls to seal them up
    • Build new jams for older and currently removed interior doors to be reused.

  • ELECTRICAL
    • Install HVAC
    • Install electrical.
    • Install any other wiring deemed necessary (AUDIO, SDI, HDMI, CAT-5 INTERNET, etc.)
    • Install plugs, switches, cover plates

  • FINISH WALLS
    • Install insulation in walls.
    • Hang sheetrock
    • Tape, bed, and texture.
    • Paint walls

  • DOORS AND CEILINGS
    • Install interior doors
    • Trim doors, windows, baseboards
    • Install drop ceiling grid
    • Install drop ceiling lights and HVAC vents
    • Install drop ceiling panels and ceiling insulation

  • FLOORING
    • Install carpet in classrooms and hallways

END OF PHASE 1

BEGIN PHASE 2  (Phase 2 demo will begin the second week of June immediately following V.B.S.)

  • DEMO
    • Remove flooring in fellowship hall, kitchen, and classrooms
    • Remove drop ceiling and insulation in fellowship hall and classrooms
    • Remove south interior wall in fellowship hall
    • Remove plaster on west wall of fellowship hall

  • FRAMING
    • Frame up faux wall along south wall (potentially along north wall as well)
    • Frame up storage closet in south east corner

  • ELECTRICAL
    • Wiring for plugs and lighting

  • SHEETROCK
    • Insulate walls
    • Sheetrock walls
    • Tape and bed walls
    • Texture walls
    • Paint walls
    • Trim windows and doors

  • CEILLING
    • Install drop ceiling grid
    • Install lights and AC ductwork
    • Install ceiling tiles and ceiling insulation

  • FLOORING
    • Install flooring in fellowship hall and kitchen

COST ANALYSIS

PROPOSED COST: $88,839.77
GIVING TO DATE: $101,258.00
SPENT TO DATE: $22,273.59

DEMOLITION COSTS - DONATED
WE DIDN'T NEED IT!
(Ronnie Bilberry hauled it all off for free!)
Saved - $1,500



FRAMING COSTS - Est - $9,378.67 / Actual - $7,156.13
2x4x10 (530)$2,814.30
2x4x16 (110)$932.80
Framing Nails$129.00
R-13 bat insulation (38bags)$2,594.64
4x8x1/2 sheetrock (223)$2,004.77
sheet rock screws$199.92
Joint Tape (12 rolls)$150.24
Joint compound (112.5 gal)$474.00
Outside Delivery$79.00




ELECTICAL COSTS - Est - $5,465.00 / Receipts $2,238.54
64 Light Fixtures (2x4 LED troffers)$4,800.00
12-2 Romex (500ft)$380.00
Plugs (50) & Switches (10)$285.00
HVAC COSTS - Est. - $25,000.00 / Actual - $8,970.23
LOUIS DRUM BID$34,350.00
2 - 4 ton systems hung in attic
All duct work
Gas and Vents
Return air in each room
No electrical


PHIL KERR BID$25,000.00
Phil has agreed to do everything at cost
He is recommending:
1 - 4 ton unit & 1 - 3 ton unit
To salvage as much duct as we can
To figure best layout after demo
He told us to allow $25,000
MASONRY COSTS - $875.00
To brick in the first cubby hole for storage.  Still collecting bids.
Randy Trull
Materials - $450
Labor - $425
DROP CEILING COSTS - $11,951.10 / Bid - $17,972.00
COWTOWN MATERIALS
12' main beam (5ctn)
$1,278.00
12' wall angle (5 ctn)$1,236.00
4' cross tee (10ctn)$2,371.20
2x4 SE white panel (47ctn)$4,178.11
12' hanger wire (1 bdl)$99.95
R19 insulation (32 bags)$2,787.84
FLOORING COSTS - $24,750.00 / Receipts $481.44
YATES FLOORING
Carpet Squares = $4.50 / sqft.$20,250.00
Laminate = $3.50 / sqft.$15,750.00
Carpet Squares Labor$4,500.00
Laminate Labor$13,500.00


DO IT OURSELVES
Carpet squares = $3.00 / sqft$13,500.00
Vinyl Plank Flooring = $4.00 / sqft$18,000.00
MISCELLANEOUS COSTS - Est. - $10,000.00 / Receipts - $7,444.41
100 Pew Chairs for SS Rooms - $3,600
Interior Spray Foam - $2,500
Paint - $1,344.41
Paint - $577.00

DONATED ADD-ONS - $26,973.00
Windows (north & west elevations) - $12,646.00
Sheetrocking Company - $10,765.00
Exterior Sealing Alley Wall - $3,562.00
LABOR COSTS - (Food, lots of food)
We're talking cakes, pies, the works!
Whatever it takes to keep our working men happy!
TOTAL - Approved - $88,839.77 / Receipts - $22,273.59 / Updated Estimate - $101,258.59
